Land Registry Compliant Plans
Delivering precise, compliant title plans to support property transactions and legal processes. Our plans meet HM Land Registry requirements and are accepted by solicitors across England and Wales.
Get a free quote- Land Registry compliant plans
- Lease plans
- Title plans
- Boundary demarcation
- Area calculations
- Solicitor-ready drawings
- Scale drawings to 1:200/1:500
- OS map referencing
Compliant, Solicitor-Ready Plans
Our land registry plans are produced to meet the exact requirements of HM Land Registry. Whether you need a lease plan for a new lease, a title plan for a first registration, or boundary demarcation for a dispute, our plans are accepted by solicitors and the Land Registry across England and Wales.
All plans include accurate OS map referencing, compass orientation, and scaled measurements drawn to the appropriate standard (typically 1:200 for individual properties or 1:500/1:1250 for larger sites).
When You Need a Land Registry Plan
Land Registry compliant plans are required for a range of property transactions:
- First registration of unregistered land or property
- New lease agreements requiring a scaled plan showing the demised area
- Property transfers and boundary disputes
- Subdivision of land or buildings into separate titles
- Amendments to existing title plans
- Right of way and easement documentation
Our Approach

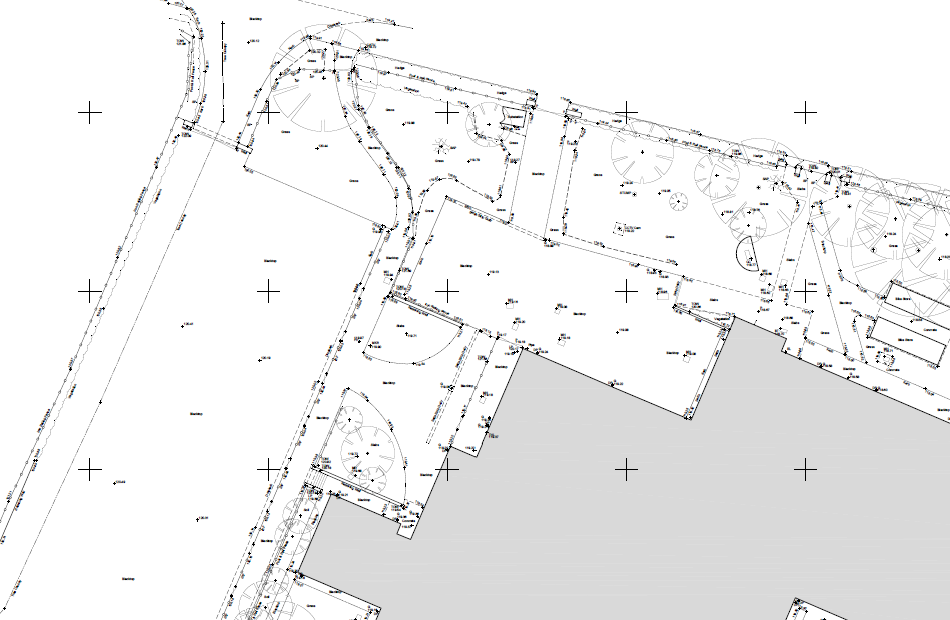

Most of the time we don’t need to visit the property. We work from up to date digital mapping that shows the existing plots and boundaries, and draw your plan straight from that. It keeps the cost down and gets the plan back to you quickly.
Some jobs do need a site visit, say where a boundary has changed and isn’t on the mapping yet, or where a line is disputed and has to be checked on the ground. When that’s the case, we measure it on site. Either way the finished plan meets HM Land Registry requirements and is ready for your solicitor.
Plan Types
Compliant plans for every property transaction
Title Plans
Showing the overall extent of freehold property with precise boundary demarcation.
Lease Plans
Specific demised areas edged in red with shared areas marked, meeting Land Registry standards.
Boundary Plans
Accurate boundary surveys for disputes, subdivisions and property transfers.
Area Calculations
Precise area measurements for property valuation, rating and lease purposes.
How We Produce Your Plan
Consultation
We go through what you need, check the property against the mapping and send you a fixed quote.
Mapping and Data
We pull the current digital mapping for the plot and check the boundaries, using any existing survey data you have. We only visit the site when a job needs it.
Drawing Your Plan
We draw your plan to the right scale and Land Registry standard, with OS referencing, orientation and dimensions.
Delivery
You get the finished plan ready for your solicitor, with support for any follow-up queries.
The Red Box Advantage
Calibrated Equipment
Professional-grade instruments maintained and calibrated for accurate, defensible results.
Expert Surveyors
90+ years combined experience. CSCS certified, fully insured and professionally qualified.
Fast Turnaround
Most surveys completed and delivered within 5-10 working days. Rush options available.
Fixed Pricing
Clear quotes upfront with no hidden fees. You know exactly what you pay before we start.
Fully Accredited
SSIP, CHAS, CSCS certified. Members of The Survey Association with full professional insurance.
UK-Wide Coverage
Nationwide service from our head office in Cheshire with satellite offices across the UK.
Why Choose Red Box Surveys
90+ Years Combined Experience
Our senior management team brings over 90 years of surveying experience, ensuring every project meets the highest standards.
Nationwide Coverage
With satellite offices across the UK, we deliver efficient, cost-effective services wherever your project is located.
Latest Technology
We use advanced 3D laser scanning, GPS and GPR equipment to deliver precise, reliable data every time.
Frequently Asked Questions
A scaled plan meeting HM Land Registry requirements for property registration. It shows the extent of the property with precise boundaries, dimensions, compass orientation and OS map referencing. Plans must meet specific standards for scale, format and detail.
Standard turnaround is 5 to 7 working days from when we have your instruction and the details we need. We offer an express service for urgent jobs, with plans delivered in 2 to 3 working days.
A title plan shows the overall extent of a freehold property. A lease plan shows the specific area being leased within a building or site, typically with the demised area edged in red and any shared areas marked.
Very rarely. Our plans are produced to meet all current HM Land Registry requirements. In the unlikely event of a query, we work with your solicitor to resolve any issues at no additional cost.
Yes. If you already have a measured building survey or topographical survey of the property, we can use this data to produce compliant plans without requiring an additional site visit.
